RSLinx Communications Software
RSNetworx for EtherNet/IP and DeviceNet Software

RSlinx

RSLinx® Classic Gateway permits 3rd-party software to access Rockwell Automation controllers using OPC DA and DDE. It is used to download the PLC program to the controller.

RSNetworx for EtherNet/IP and DeviceNet

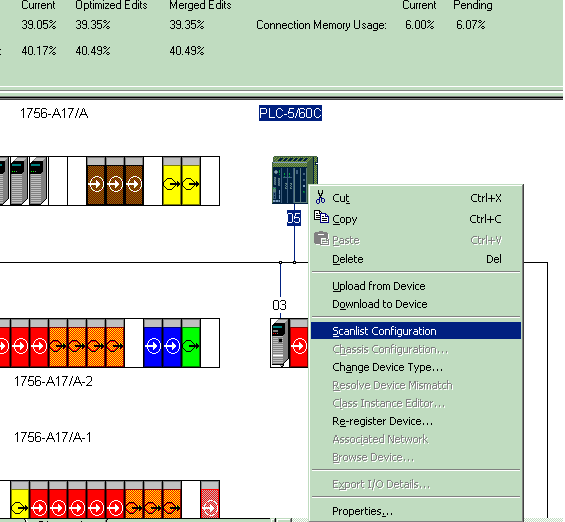

RSNetWorx™ provides design and configuration management services for ControlNet™, DeviceNet™, and EtherNet/IP™.

Although a useful tool for network monitoring, RSNetWorx for EtherNet/IP is not required when implementing an EtherNet network, unlike RSNetWorx for DeviceNet which is required to configure the network.

Click on the image to return to the Rockwell Software installation page.



NOTE:

All Download files are in ZIP format:
With B1 Archiver, right click on the zip file and select extract to "the zip file name shown". This extract the setup files into their own folder.
I recommend extracting all setup software into a folder called "Rockwell Installation Software" on your hard drive or a USB drive.




Download - RSLinx Classic Gateway


RSlinx Classic Gateway Version 2.57 (Required)



RSLinx Classic Gateway v2.57 PLC Communications Installation Software - 649 MB

Install RsLinx Classic Gateway Before Installing Any Other Rockwell Software.

RSlinx Is Required To Be Installed Before SoftLogix 5800 or RSLogix Emulate 5000
Can Be Installed On The Computer.

RSLinx Classic Getting Results Guide.pdf



Installation Video


RSLinx v2.57 - Startup Configuration and Browsing

View the installation video below in full screen mode so you can read the text






Download - RSNeworx For EtherNet/IP


RSNeworx For EtherNet/IP Version 10.0 (Optional)



RSNetworx v10 for EtherNet/IP Network Installation Software - 794 MB

Install RSNetworks For EtherNet/IP (Ethernet with Industrial Protocol)
To View PLCs, Devices and I/O (Input/Outut) Racks On the Network.

Getting Results with RSNetWorx for EtherNet_IP.PDF



Installation Video


RSNeworx For EtherNet/IP Browsing The Network

View the installation video below in full screen mode so you can read the text






Download - RSNeworx For DeviceNet


RSNeworx For DeviceNet Version 10.0 (Optional)



RSNetworx v10 for DeviceNet Network Installation Software - 1.1 GB

Install RSNetworks For DeviceNet (DeviceNet is an Industrial Network) To View
Devices, Configure I/O and Address Device and (Input/Outut) Racks On the Network.

Getting Results with RSNetWorx for DeviceNet.pdf



Install Video


RSNeworx For DeviceNet Browsing The Network

View the installation video below in full screen mode so you can read the text
